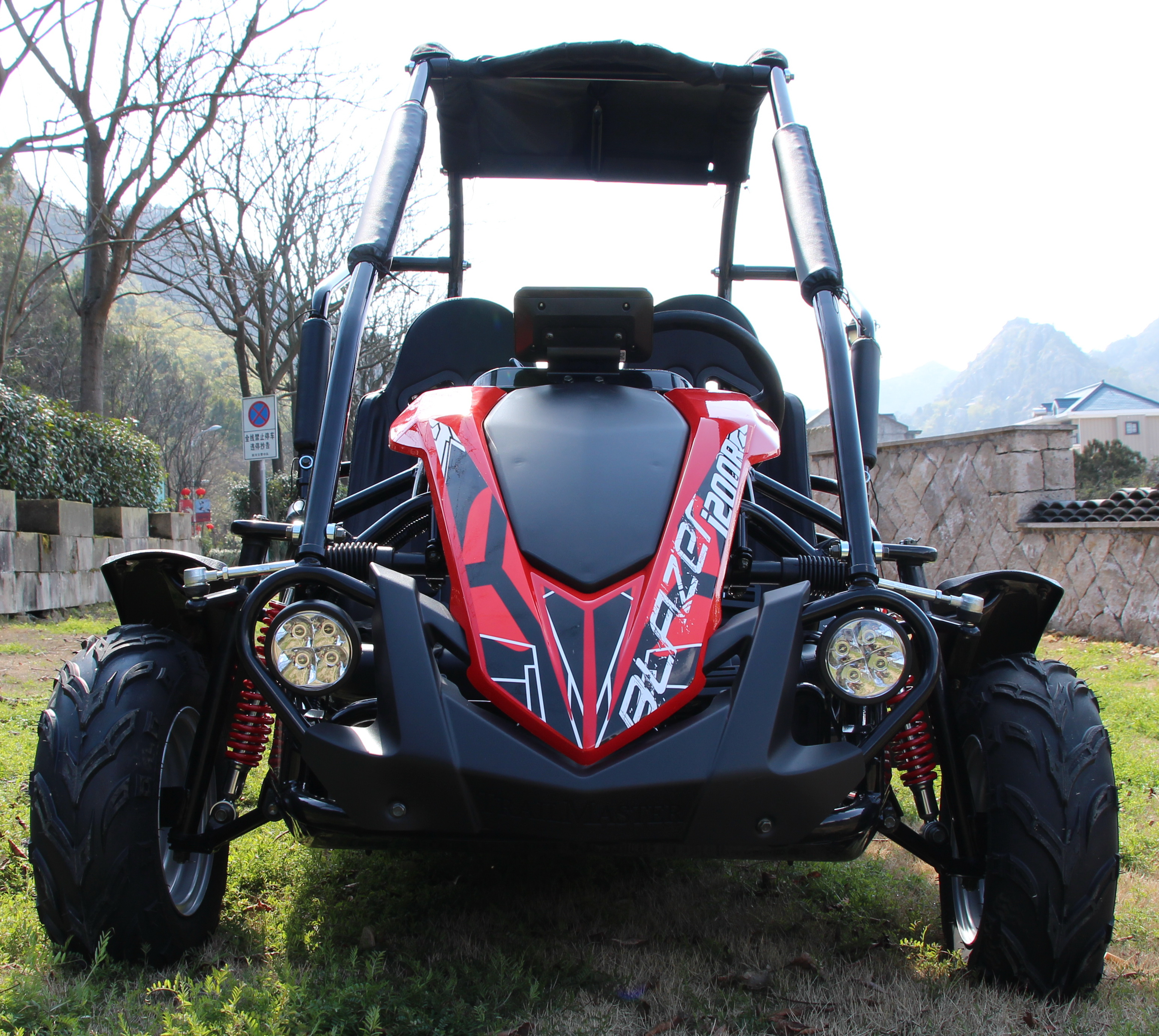

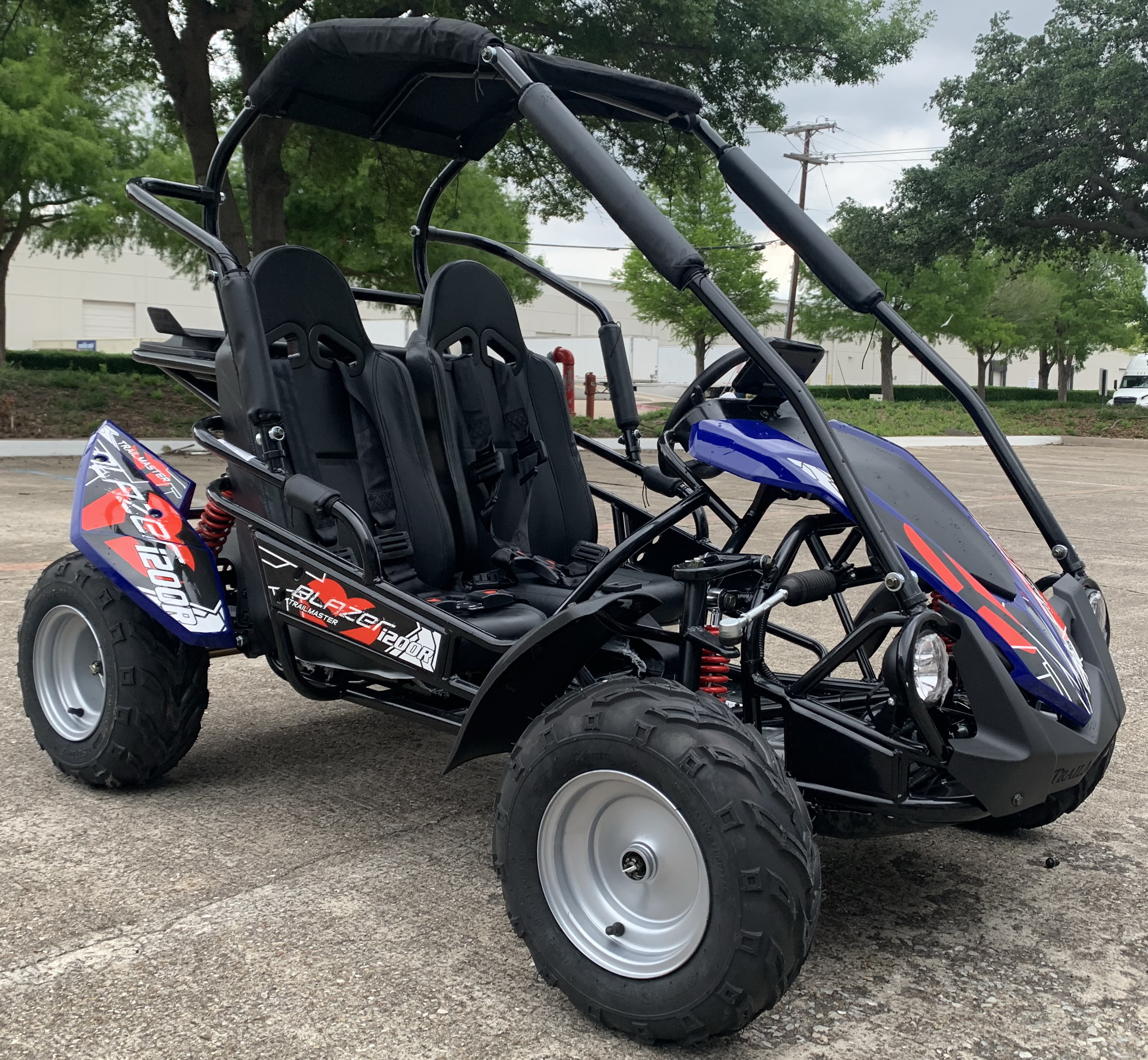

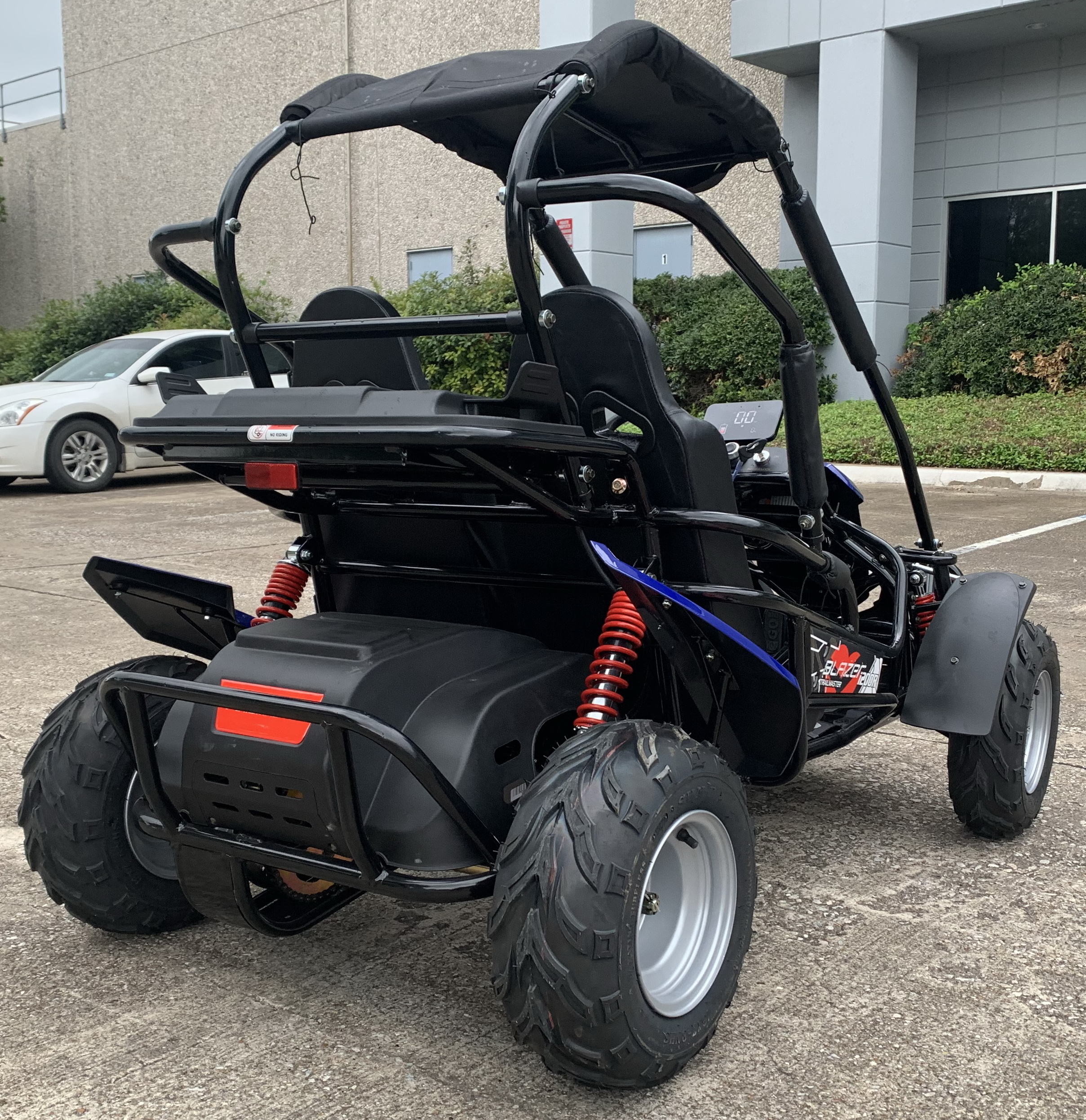

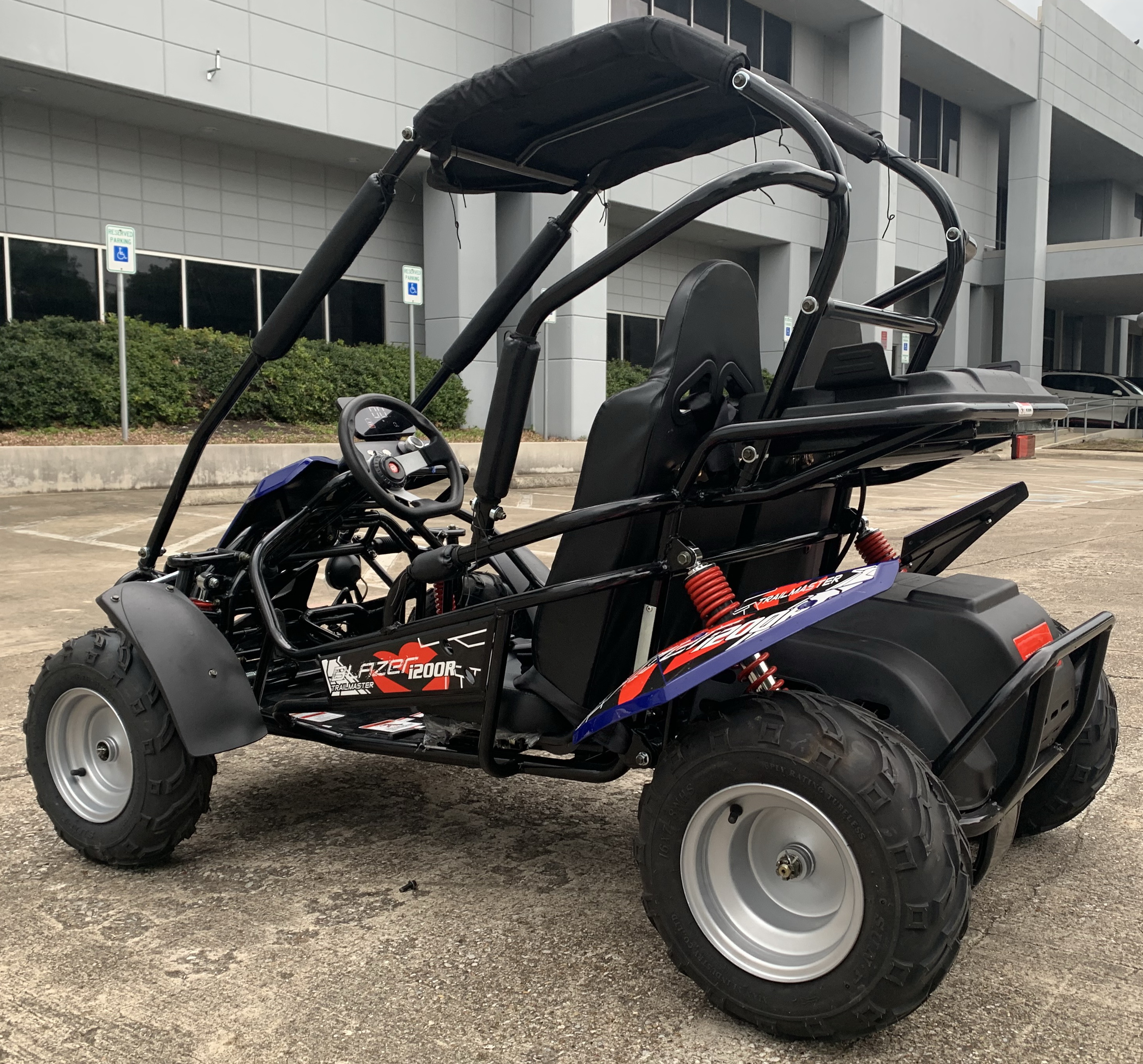

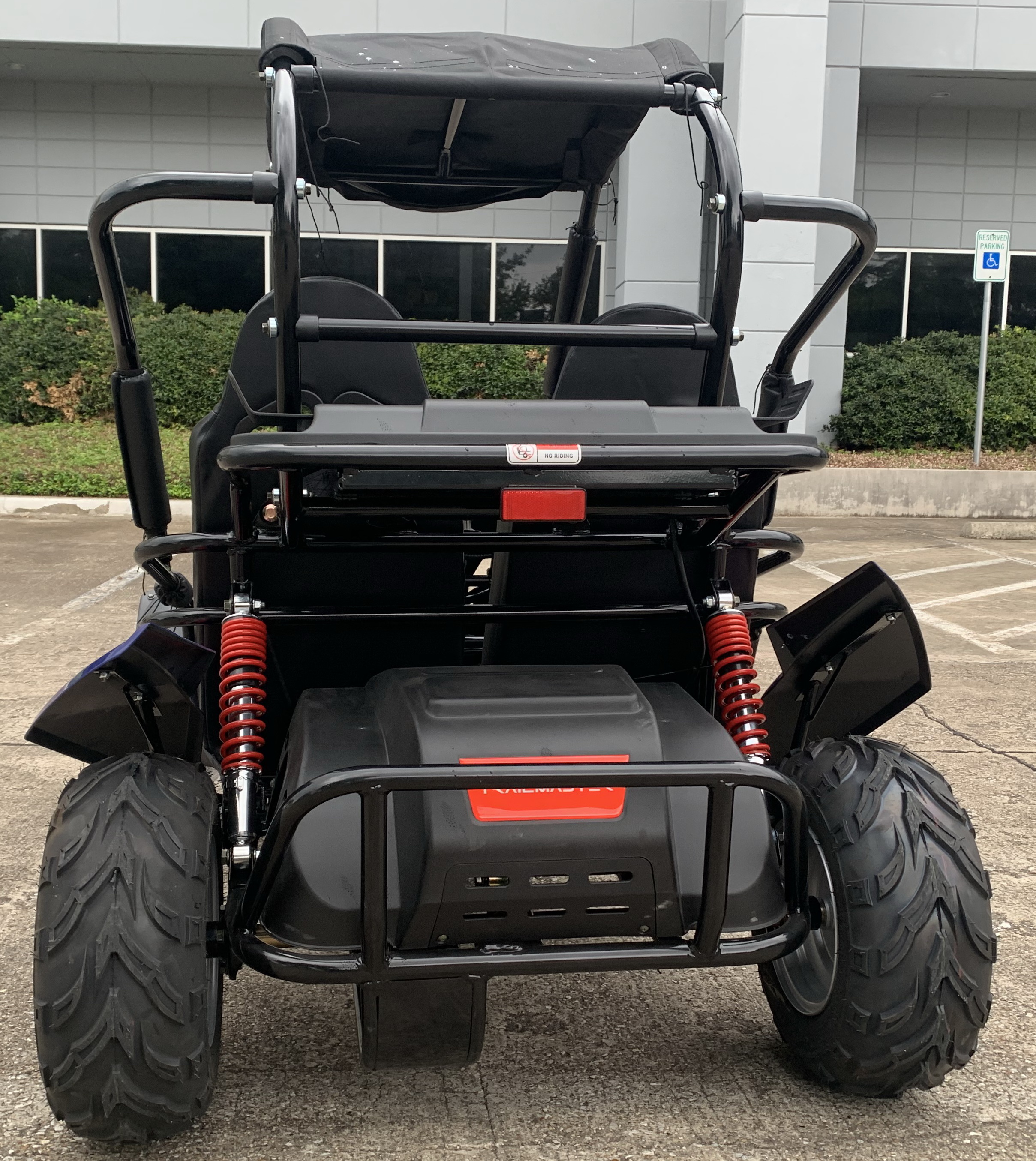

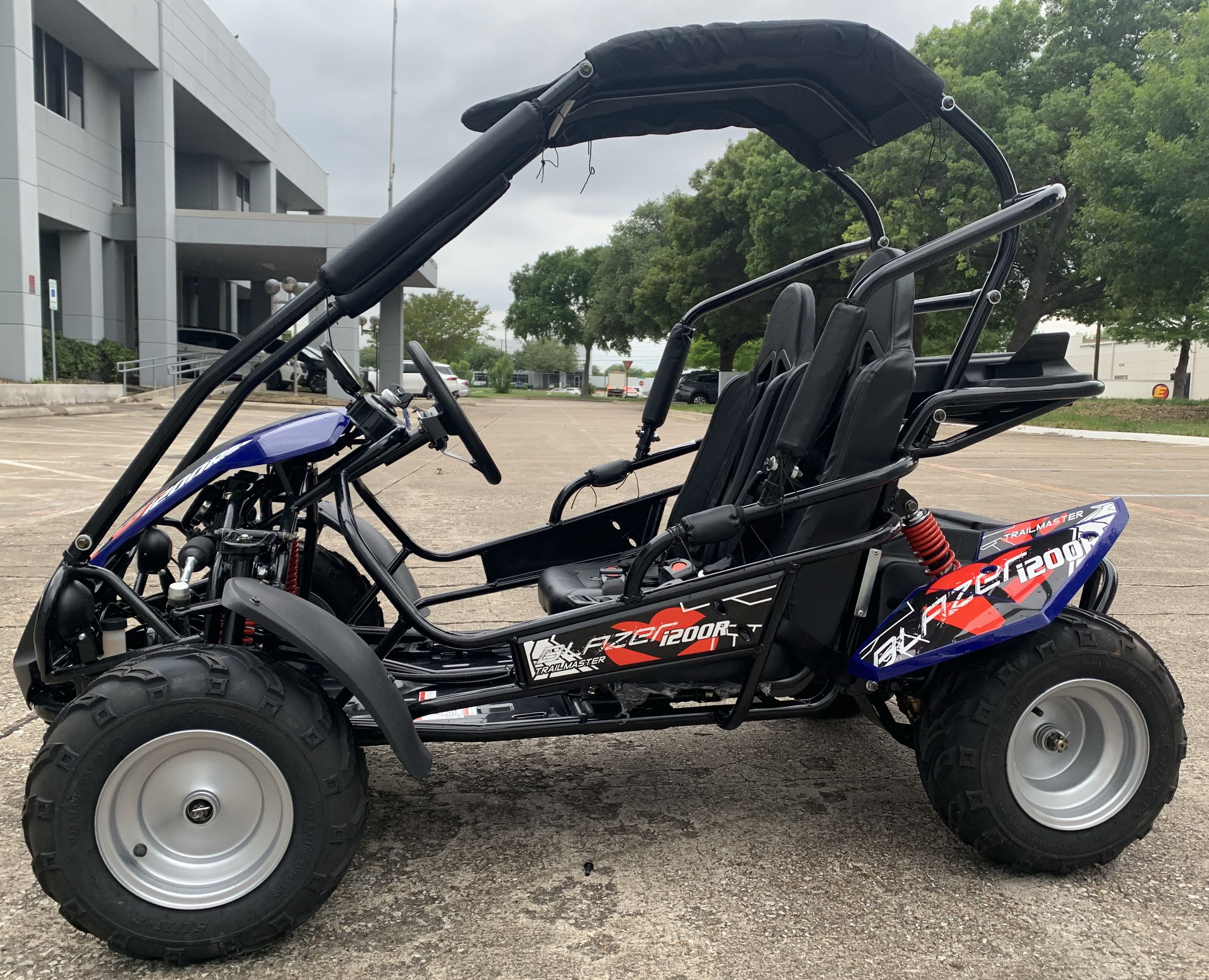

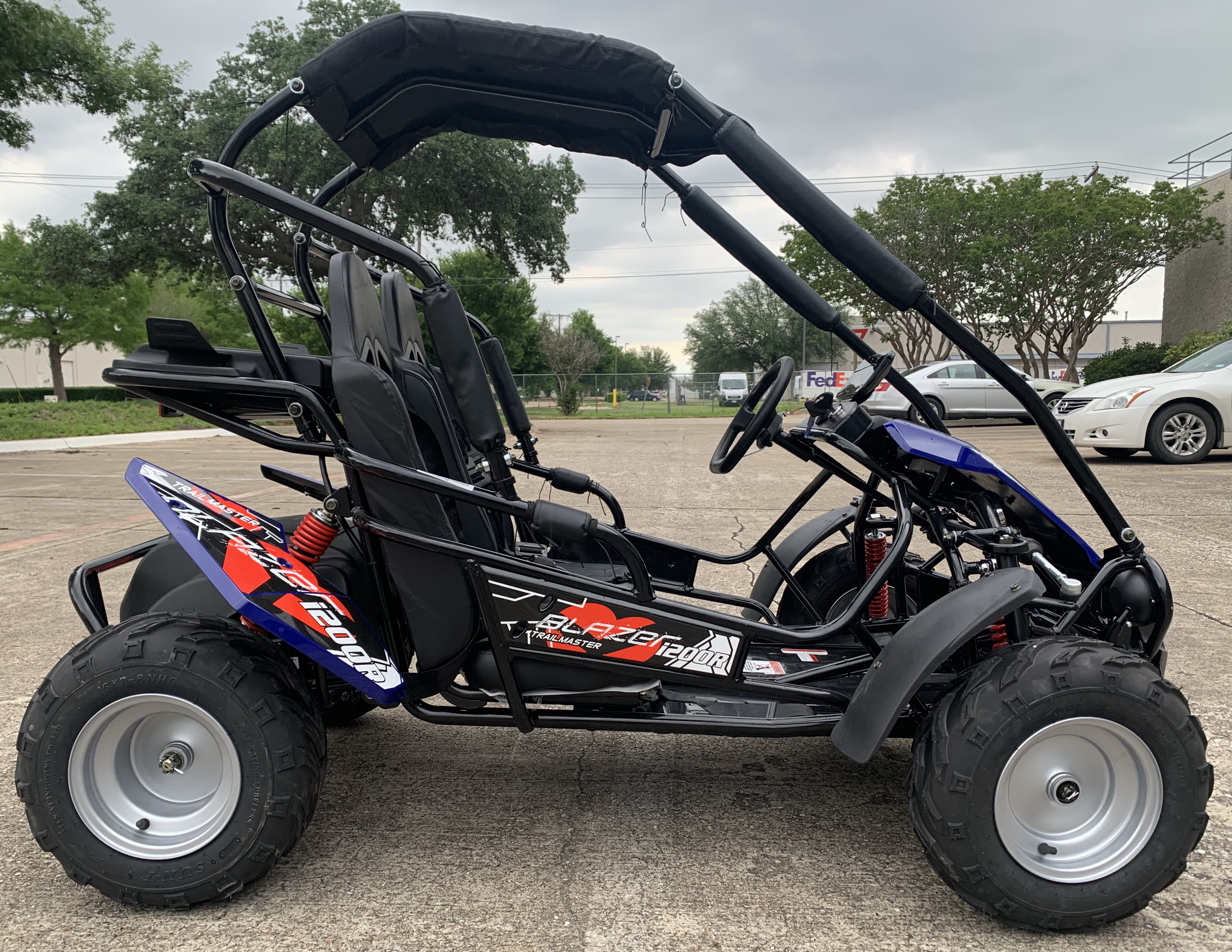

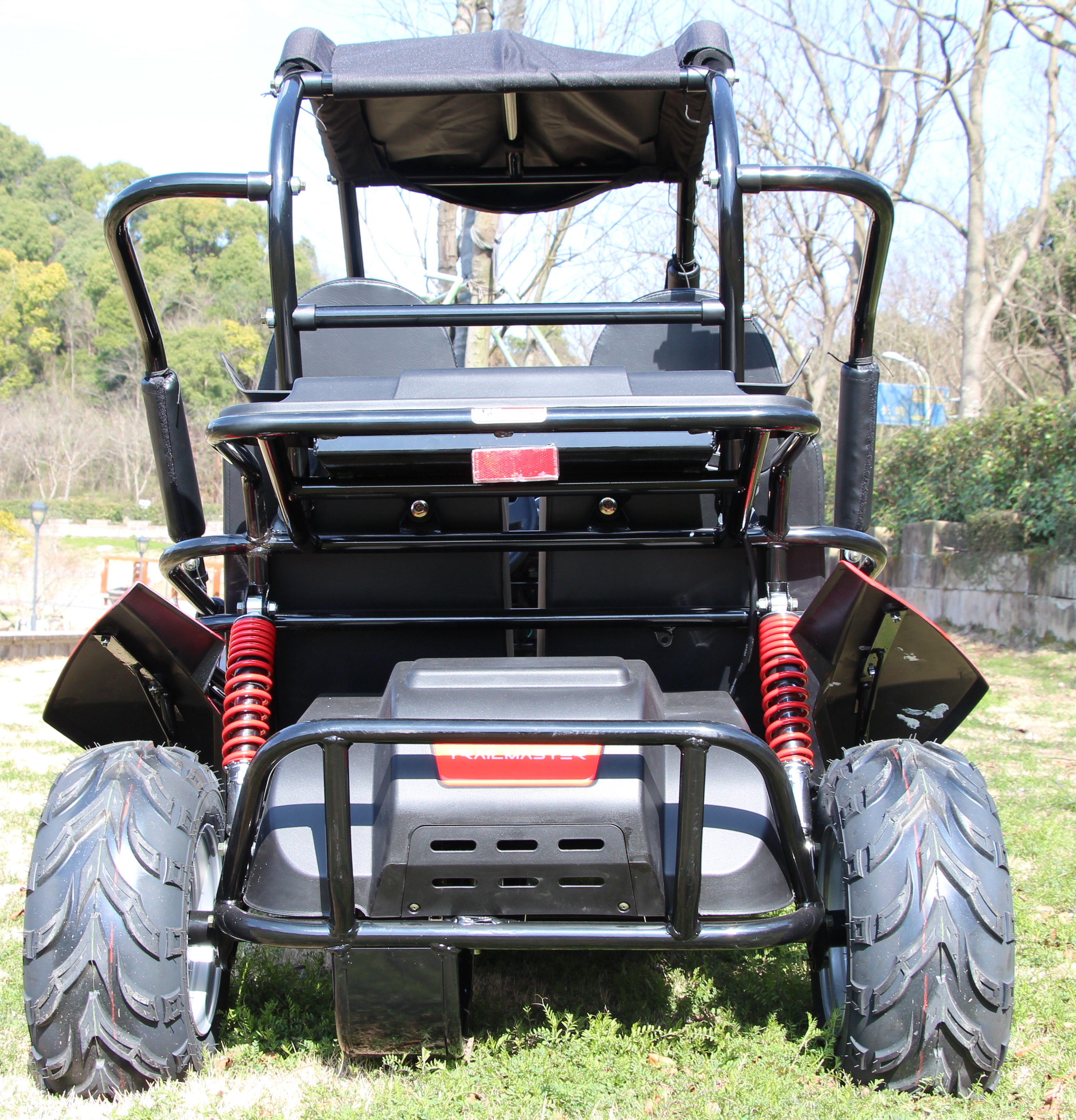

TrailMaster Blazer i200R Electric Mid Go-Kart

Product Description

TrailMaster is proud to announce US’s first Lithium battery mid-size go kart has arrived: the TrailMaster Blazer i200R Electric Mid-Sized Go-Kart! This Blazer i200R equips with 60V 1.8KW electric motor and 48V 29Ah lithium battery that has the output power of 1.4 Kw. This fully automatic with reverse Blazer i200R offers 2 forward driving mode: with “D” mode top speed 13M/h; with “S” mode top speed at 27M/h; Full charge can go up to 36 miles.

TrailMaster Blazer i200R Electric Mid GoKart Key Features:

• Powered by 48V, 29Ah Lithium battery

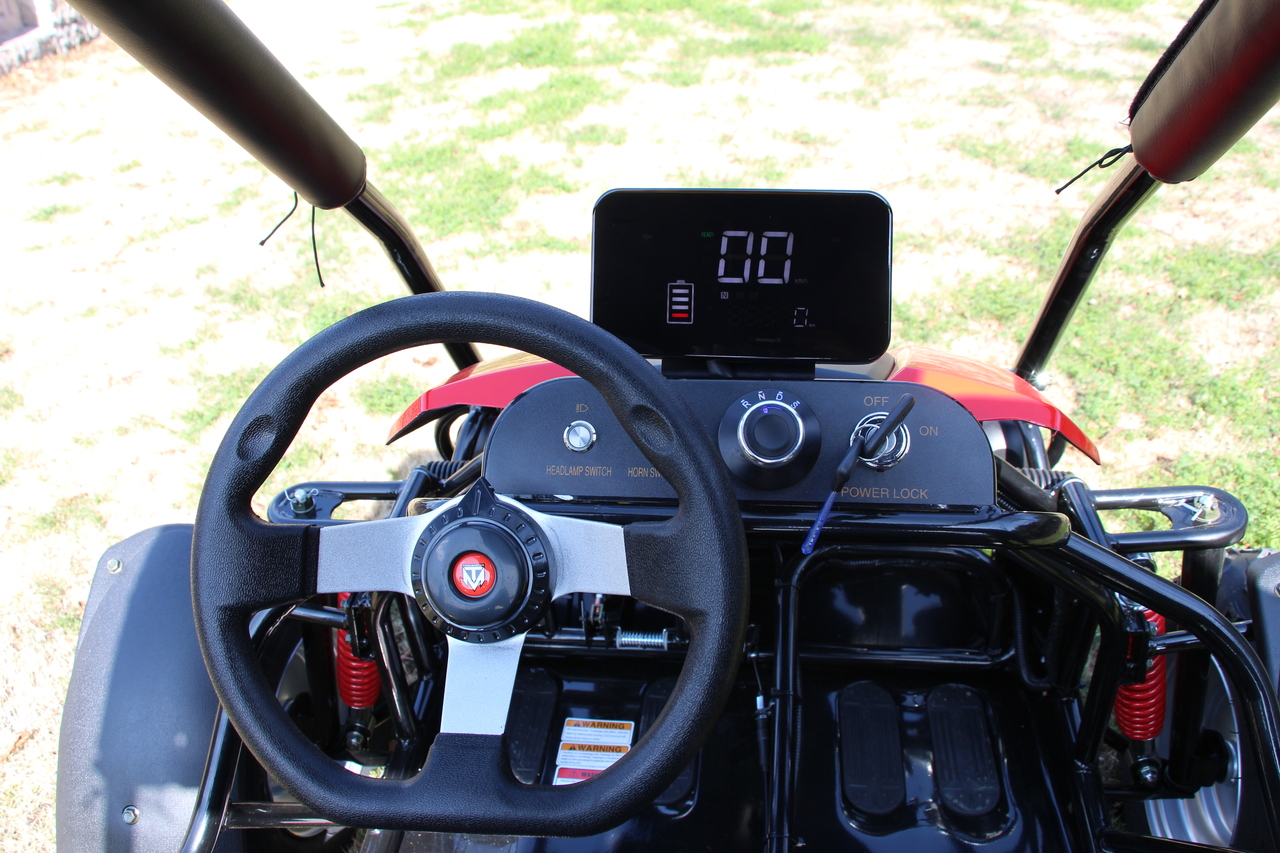

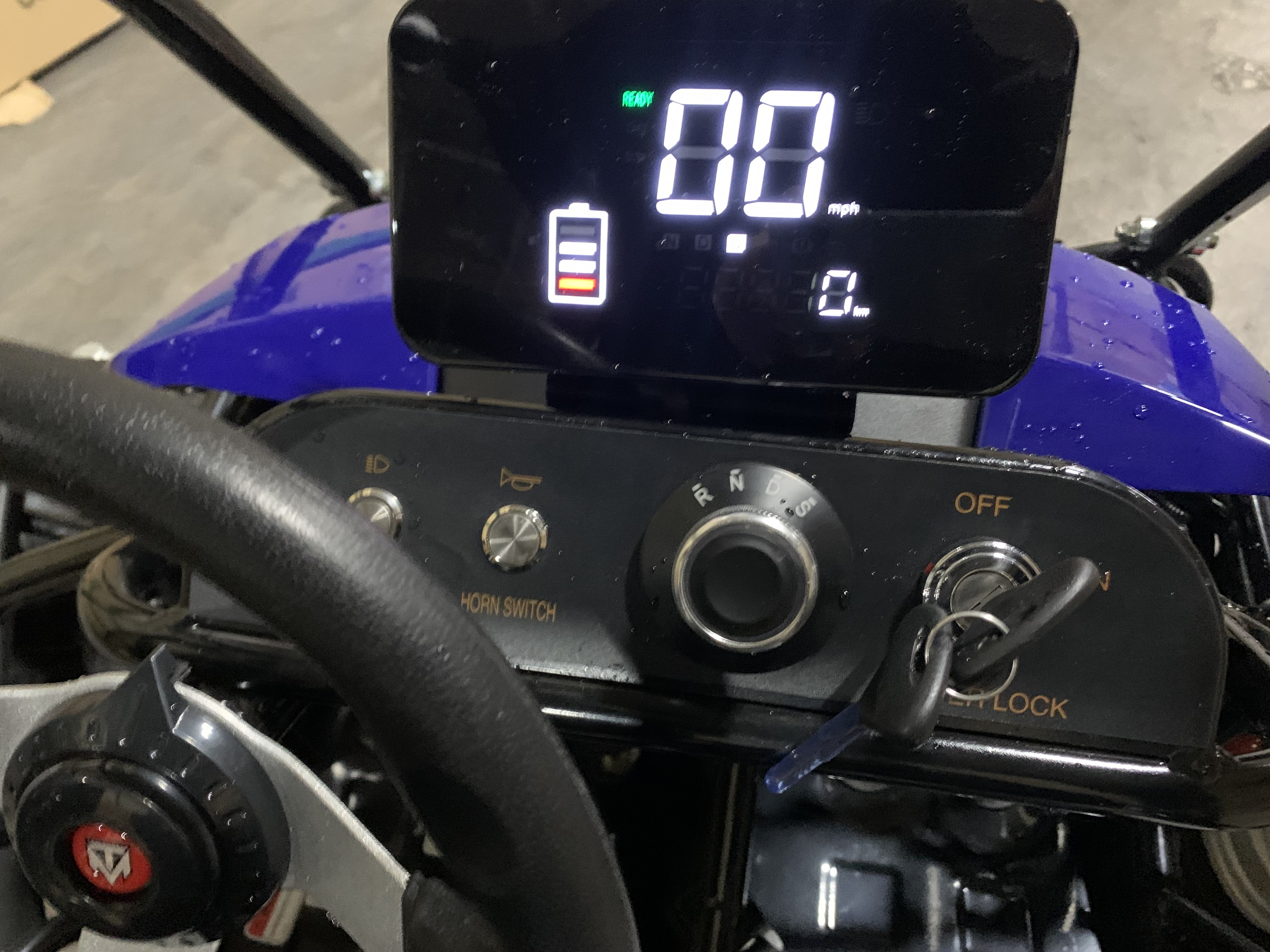

• Digital LED monitor
• Fully automatic with reverse
• Driver has to hit brake in order to engage throttle pedal for safety
• Offers two driving mode: with “D” mode top speed only 15M/h; with “S” mode top speed 27M/h
• Strong low-end torque and able to climb 20 degrees slope
• Canopy top
• 5-Point safety harness seatbelt
• LED headlight
• Horn
• All-wheel fenders
• Big tires: F / R: 16x6-8 / 16x7-8
• Rack and pinion steering wheel
• Hydraulic disc brake
• Padding over roll cage
• Individual sporting seats
• Adjustable driver seat: pedal to seat back adjustable from 34” to 39”

TrailMaster Blazer i200R Electric Mid Gocart Specifications

Battery Information

• Battery: Lithium
• Battery Weight: 14 lbs
• Nominal Voltage: 48V
• Rated Capacity 29Ah
• Charging Temperature Range: 32 °F to 115 °F
• Storage Temperature Range: 14 °F to 115 °F
• Cycle Life: Cycle to 60% at normal temperature, 100% DOD >= 600 times
• Charging Time: 9h
• Range:36 miles max depending on weight, speed and driving conditions.
• Battery Warranty: 6 Months

Electric Motor Information

• Service Voltage: 60V
• Rated Power: 1.8KW
• Output Power: 1.4KW
• Rated Speed: 4350RPM
• Rated Current: 33A
• Rated Torque: 4Nm
• Max Torque: 87Nm/450A
• Current limit: 75A

General Information

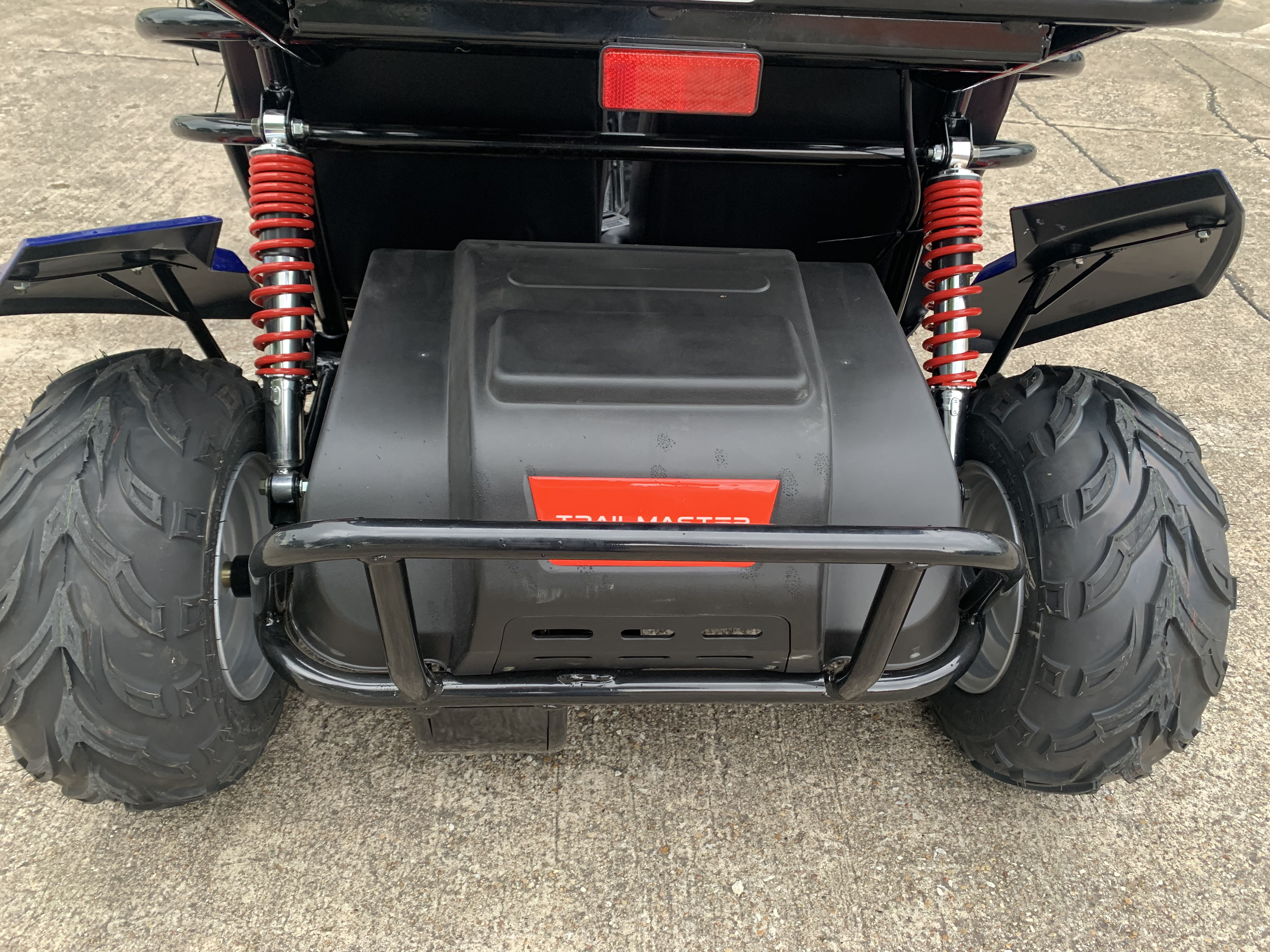

• Suspension, F / R: Double A-arm / Double Oil Damped Shock
• Brakes: Rear Hydraulic brake, Disc
• Tires, F / R: 16x6-8 / 16x7-8
• Weight, G.W. / N.W.: 435 / 352 lbs
• Max load: 440 lbs
• Driving Mode: R-N-D-S
• Max speed: 15mph on “D” mode; 27 mph on “S” mode
• Climbing ability: 20 degrees
• Wheelbase: 48.4 inches
• Height to seat: 10.2 inches
• Min ground clearance: 2.8 inches
• Pedal to seat back distance: 34-39 inches
• OA L x W x H: 67x44x51.2 inches
• Crate size: 70X44X26 inches

Things To Know:

• Thank you for considering GoPowerSports as your source for quality outdoor power sports needs. We take pride in our commitment to providing excellent customer service and support. We aim to ensure complete satisfaction with your purchase and encourage you to review our warranty policies carefully. If you have any questions, please feel free to contact us via email at sales@gopowersports.com or by calling 1-866-846-5278.
• We highly recommend that you have a professional mechanic or an authorized dealer of the manufacturer perform the initial assembly and preparation of the vehicle.
• We want you to know that basic repair and setup skills are necessary for buyers, such as using tools, replacing nuts and bolts, filters, light bulbs, fluids, and making adjustments. If you lack these skills, we suggest seeking the assistance of a mechanic. Our tech support hotline is always available to help you.
• Check over all Nuts and Bolts to ensure they are fastened before and after initial ride.
• This vehicle is meant for recreational use only.

Warranty:

• 90 Day Limited Warranty on Frame & Engine; 30 Day Limited Warranty on Non-Wear Items.
• The limited warranty covers specific parts only, including the engine, engine case, drive system, fuel system, electrical system, cooling system, brakes, chassis, and transmission. Please note that the warranty does not cover any damage caused by improper use, such as jumping, stunt riding, modification, racing, or riding at constant wide-open throttle.
• Please be aware that the following parts are NOT covered by the warranty: tires, rims, body panels, forks, shocks, gaskets, light bulbs, seats, CV boots, oil filters, air filters, fuel filters, clutch wear parts, cables, drive belts, chains, spark plugs, rubber parts, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts, and fasteners.
• Our warranty does not cover damages caused by improper assembly, maintenance, or usage that falls outside of the manufacturer's specifications.
• Also, please note that no returns are accepted on this unit.

Shipping:

• If you purchase a TrailMaster Unit, please know that it only ships to the lower 48 states.  Contact us if you would like a quote for shipping to Hawaii or Alaska.
• If unit is shipped to California, then it can only be used on Private Land if the engine is not EPA or CARB compliant.
• Please allow 3-5 business days for your unit to ship. Once shipped, a tracking number will be emailed to you. The shipping company will contact you to confirm delivery.
• You will be responsible for handling the crate whether it is delivered residential, local Carrier Terminal, or business dock.  This may require a forklift.

Assembly:

• You may choose to receive this vehicle unassembled in the crate and take advantage of Free Shipping within the lower 48 States.  You would be responsible to complete assembly.
