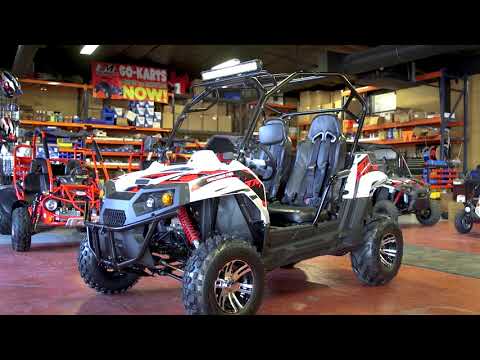

TrailMaster Challenger 200X UTV (TM-CHALLENGER200X)

Overview

Product Description

Explore the Great Outdoors with the TrailMaster Challenger 200X Deluxe UTV! It's designed to be just the right size for many age groups with an adjustable steering column and reverse! Plus, there's a full upper brush guard complete with sunshade canopy for all day riding, side protection rails with heavy-duty nylon safety nets and dual seats with seat harnesses to help keep you safe while riding. The TrailMaster Challenger 200X UTV is powered by a reliable, electric start 4-stroke engine, automatic CVT transmission and chain driven dual rear wheel drive. Stopping is extra firm thanks to 4-wheel hydraulic assist disc brakes. The full suspension system and all-terrain tires help the Challenger 200X crawl over the toughest trails. The Challenger 200X UTV comes in several great colors!

TrailMaster Challenger 200X UTV Specifications:

Engine Information

Engine type 4-stroke, single cylinder, air cooled
Displacement 168.9cc
Output Max. 11.1HP/8000rpm
Max torque 8.1 lb ft/6000rpm (1.12kgm/6000rpm)
Bore x stroke 2.4 x 2.275 inches (61x57.8mm)
Climbing ability: 20-25 degrees
Ignition: CDI • Starting system: Electric
Battery: 12V 10Ah
Carburetor brand: Deli (Vacuum film)
Engine oil: SAE 15W-40 General Information
Clutch: Automatic CTV with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: Independent Dual A-arm / Double Oil Damped Shock
Brakes F / R: Hydraulic Disc
Tires F / R: 22X7-10 / 22x10-10
Safety: top brush guard, canopy, side nets, seat harnesses
Fuel capacity: 1.75 gal • Gross Weight: 650 lbs
Net Weight: 528 lbs
Max load: 500 lbs Dimension Information
Wheelbase: 72 inches
Dimensions (L x W x H): 98x48x60 inches
Height to seat: 21 inches
Min ground clearance: 6.3 inches
Bed Measurements: (L) 33.5" ID (W) 16.5" ID

Things To Know:

Thank you for considering GoPowerSports as your source for quality outdoor power sports needs. We take pride in our commitment to providing excellent customer service and support. We aim to ensure complete satisfaction with your purchase and encourage you to review our warranty policies carefully. If you have any questions, please feel free to contact us via email at sales@gopowersports.com or by calling 1-866-846-5278.
We highly recommend that you have a professional mechanic or an authorized dealer of the manufacturer perform the initial assembly and preparation of the vehicle.
We want you to know that basic repair and setup skills are necessary for buyers, such as using tools, replacing nuts and bolts, filters, light bulbs, fluids, and making adjustments. If you lack these skills, we suggest seeking the assistance of a mechanic. Our tech support hotline is always available to help you.
These vehicles ship with break-in oil. Must check oil levels before initial start up and fill with quality oil if low.
Check over all Nuts and Bolts to ensure they are fastened before and after initial ride.
This vehicle is meant for recreational use only.

Warranty

90 Day Limited Warranty on Frame & Engine; 30 Day Limited Warranty on Non-Wear Items.
The limited warranty covers specific parts only, including the engine, engine case, drive system, fuel system, electrical system, cooling system, brakes, chassis, and transmission. Please note that the warranty does not cover any damage caused by improper use, such as jumping, stunt riding, modification, racing, or riding at constant wide-open throttle.
Please be aware that the following parts are NOT covered by the warranty: tires, rims, body panels, forks, shocks, gaskets, light bulbs, seats, CV boots, oil filters, air filters, fuel filters, clutch wear parts, cables, drive belts, chains, spark plugs, rubber parts, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts, and fasteners.
Our warranty does not cover damages caused by improper assembly, maintenance, or usage that falls outside of the manufacturer's specifications.
Also, please note that no returns are accepted on this unit.

Shipping:

If you purchase a TrailMaster Unit, please know that it only ships to the lower 48 states. Contact us if you would like a quote for shipping to Hawaii or Alaska.
If unit is shipped to California, then it can only be used on Private Land if the engine is not EPA or CARB compliant.
Please allow 3-5 business days for your unit to ship. Once shipped, a tracking number will be emailed to you. The shipping company will contact you to confirm delivery.
If choosing Unassembled in Crate, you will be responsible for handling the crate whether it is delivered residential, local Carrier Terminal, or business dock. This may require a forklift.
If choosing Mostly Assembled in Crate, you will be responsible for handling the crate whether it is delivered residential, local carrier terminal, or business dock. This may require a forklift.
If choosing Fully Assembled, Residential Delivery is available by car hauler or flat bed.

Assembly:

You may choose to receive this vehicle unassembled in the crate and take advantage of Free Shipping within the lower 48 States. You would be responsible to complete assembly.
You may choose to receive this vehicle partially assembled in crate. You will need to attach the roll cage, battery, steering wheel, and a few other adjustments.
The other option is to have this unit 100% built at the warehouse and then transported to you by a car hauler or flat bed.
