TrailMaster Taurus 200U UTV w/ Bed (TM-TAURUS200U)

Overview

Product Description

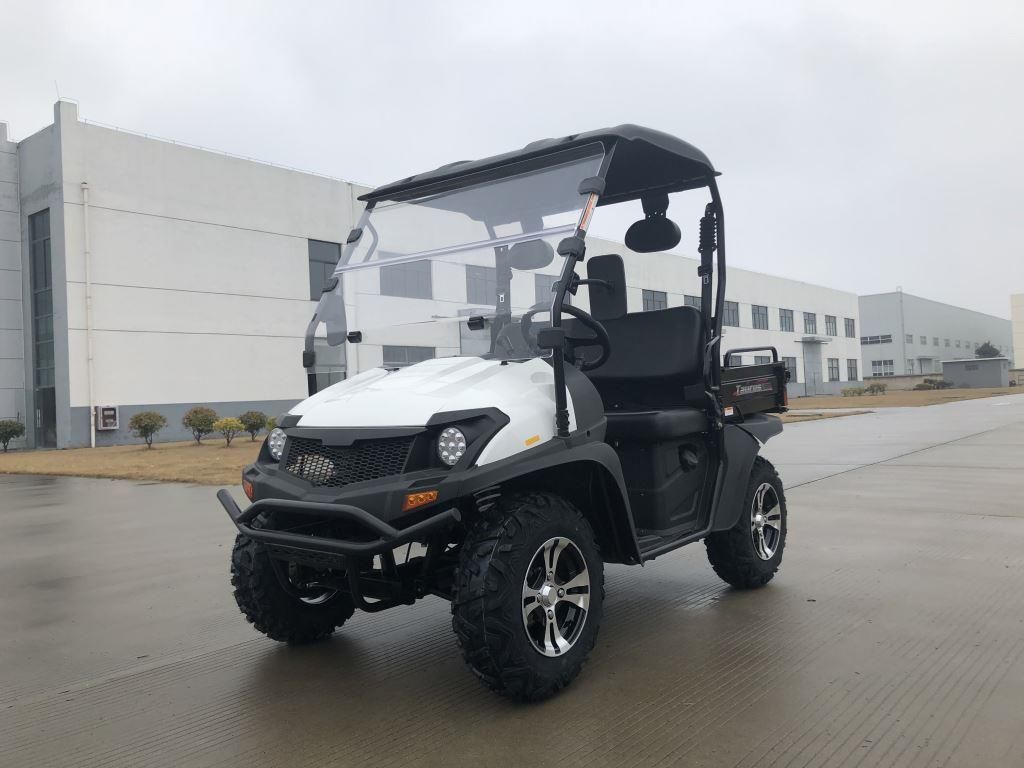

Introducing the Taurus 200U UTV Side by Side, a powerful and reliable vehicle that's perfect for all your outdoor adventures. This versatile machine is equipped with a 9.5 HP air and oil cooled high performance 177cc GY6 engine with internal reverse set up, and comes standard with a H/L gear. The low gear mode has a 40% better climbing ability than the non H/L version and can climb 30 degree slopes with ease, making it perfect for off-road exploration. The Taurus 200U is built to handle any terrain with its four-wheel independent suspension, heavy duty frame, and big aggressive off-road tires. The steel dump bed and steel front bumper are both heavy duty and built to last. Plus, the UTV is equipped with a range of features to enhance your driving experience, including a digital dashboard, LED Hi/Lo head lights, rear view side mirrors, sporting steering wheel, turn signals, retractable safety seatbelt, cup holder, 12-V outlet, and horn. The UTV's engine is EPA certificated and boasts impressive specifications, including a 177.3cc displacement, 8.8:1 compression ratio, and 9.5HP max power. The transmission is automatic, with L-H-N-R options, and the drive train is shaft drive with 2WD. The suspension features front MacPherson and rear dual A-ARM, while the brakes are both hydraulic and disc. The aluminum wheels are complimented by big aggressive off road tires, and the fuel tank capacity is 4.8 gallons. In terms of dimensions, the Taurus 200U has a wheelbase of 63 inches, an overall length x width x height of 108 x 54 x 74 inches, and a seat height of 33 inches. The minimum ground clearance is 11 inches, and the dump bed has a capacity of 220 lbs, while the towing capacity is 200 lbs. Overall, the Taurus 200U UTV Side by Side is the perfect vehicle for anyone who loves outdoor adventures. It's powerful, reliable, and packed with features to enhance your driving experience.

Taurus 200U UTV Side by Side Key Features:

Equipped with heavy duty steel dump bed
Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease.
Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency;
Four-wheel independent suspension for much better driving experience
Heavy duty frame, net weight 828 lbs, max load 600 lbs
Digital dashboard
LED Hi/Lo head lights
Rear view side mirrors
Sporting steering wheel
Turn signals
Retractable safety seatbelt
Big aggressive off road tires: F / R: 24 x 8-12 / 24 x 8-12
Polished aluminum wheels
Hard top
Steel front bumper
Cup holder
12-V outlet
Adjustable heavy duty front and rear shock absorber
Front and rear hydraulic disc brake
Large gas tank
Horn

Engine Information

EPA Certificated
Engine Type: 4-stroke, single cylinder, air and oil cooled
Displacement: 177.3cc
Compression Ratio: 8.8:1
Max HP: 9.5HP
Bore & Stroke: 62.5X57.8 mm
Max Torque and Crankshaft Speed: 11.0/4500 N.m/(RPM)
Nominal Power and Crankshaft Speed: 6.5/6500 kw/(RPM)
Max Speed: 25mph
Climbing Ability: 30 degrees
Ignition: C.D.I
Starting System: Electric
Battery: 12V 9Ah
Carburetor Brand: Deli
Engine Oil: SAE 15W/40 General Information
Transmission: Auto, L-H-N-R
Drive Train: Shaft Drive; 2 WD:
Drive Mode: Rear Shaft Drive, Rear differential
Suspension, F/R: Front MacPherson, Rear Dual A-ARM
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 24 x 8-12 / 24 x 8-12
Fuel Tank Capacity: 4.8 gallons
Wheels: Aluminum
Weight, Gross 1018lbs/ net 828 lbs
Max Load: 600 lbs
Dump Bed Capacity: 220 lbs
Towing Capacity: 200 lbs Dimension Information
Wheelbase: 63”
OA L x W x H: 108”x54”x74”
Seat Height: 33”
Min Ground Clearance: 11”
Bump Bed: 26.4”X43.4”X9.5”

Things To Know:

Thank you for considering GoPowerSports as your source for quality outdoor power sports needs. We take pride in our commitment to providing excellent customer service and support. We aim to ensure complete satisfaction with your purchase and encourage you to review our warranty policies carefully. If you have any questions, please feel free to contact us via email at sales@gopowersports.com or by calling 1-866-846-5278.
We highly recommend that you have a professional mechanic or an authorized dealer of the manufacturer perform the initial assembly and preparation of the vehicle.
We want you to know that basic repair and setup skills are necessary for buyers, such as using tools, replacing nuts and bolts, filters, light bulbs, fluids, and making adjustments. If you lack these skills, we suggest seeking the assistance of a mechanic. Our tech support hotline is always available to help you.
These vehicles ship with break-in oil. Must check oil levels before initial start up and fill with quality oil if low.
Check over all Nuts and Bolts to ensure they are fastened before and after initial ride.
This vehicle is meant for recreational use only.

Warranty

90 Day Limited Warranty on Frame & Engine; 30 Day Limited Warranty on Non-Wear Items.
The limited warranty covers specific parts only, including the engine, engine case, drive system, fuel system, electrical system, cooling system, brakes, chassis, and transmission. Please note that the warranty does not cover any damage caused by improper use, such as jumping, stunt riding, modification, racing, or riding at constant wide-open throttle.
Please be aware that the following parts are NOT covered by the warranty: tires, rims, body panels, forks, shocks, gaskets, light bulbs, seats, CV boots, oil filters, air filters, fuel filters, clutch wear parts, cables, drive belts, chains, spark plugs, rubber parts, belts, brake linings and/or pads, batteries, sprockets, external springs, clips, nuts, bolts, and fasteners.
Our warranty does not cover damages caused by improper assembly, maintenance, or usage that falls outside of the manufacturer's specifications.
Also, please note that no returns are accepted on this unit.

Shipping:

If you purchase a TrailMaster Unit, please know that it only ships to the lower 48 states. Contact us if you would like a quote for shipping to Hawaii or Alaska.
Please allow 3-5 business days for your unit to ship. Once shipped, a tracking number will be emailed to you. The shipping company will contact you to confirm delivery.
If choosing Mostly Assembled in Crate, you will be responsible for handling the crate whether it is delivered to the LTL local carrier terminal or business dock. This may require a forklift.
If choosing Fully Assembled, Residential Delivery is available by car hauler or flat bed.

Assembly:

You may choose to to have this unit mostly assembled. You will be responsible for attaching the top roll cage, steering wheel, battery as well as other adjustments.
The other option is to have this unit 100% built at the warehouse and then transported to you by a car hauler or flat bed.
